Commercial Induction Cooker 3500W: Model Selection, Commercial Power and Installation

What Types of 3500W Commercial Induction Cookers Are Available?

A 3500W commercial induction cooker is not limited to one body style. For buyers, the model type mainly determines three things: whether the unit can be moved easily, whether the countertop needs to be modified, and whether the heating surface is better suited to a flat-bottom pan or a wok. The common options are countertop single-burner, built-in, and countertop wok-style models.

Countertop Single-Burner Induction Cooker

A countertop single-burner induction cooker sits directly on the work surface and is designed for one piece of cookware at a time. It concentrates the 3.5kW output on one cooking station, requires no countertop cutout, and can be repositioned according to service, preparation, or temporary event needs.

This type is suitable for:

• Single-pot cooking stations in small restaurants;
• Food stalls, café back kitchens, and hotel pantries;
• Food trucks, takeaway kitchens, and temporary catering events;
• Kitchens that need to add a heating station temporarily during peak hours.

ATRX AT-CTP-003 is a 3.5kW countertop flat induction cooker. It measures 420 × 470 × 300mm, uses an SS304 stainless steel body, and comes in a standard 220V single-phase configuration. This size and structure suit kitchens with limited countertop space that still need the flexibility to move the unit. Its rotary control allows users to adjust several power levels, so staff can start, adjust, and shut down the cooker without complicated training. For detailed specifications, see the ATRX 3.5KW Countertop Single-Burner Induction Cooker product page.

For this type of countertop cooker, the priority is not simply choosing the smallest unit. The cooker, cookware, and operating area must fit together. A single-pot station usually shares the same work surface with ingredient bowls, seasonings, and serving containers, so reserve space according to the actual workflow before purchasing.

Built-In Induction Cooker

A built-in induction cooker is installed inside the countertop, leaving the cooking surface level with the worktop. It is suitable for a fixed 3.5kW cooking station, a clean countertop layout, or a kitchen that integrates single-pot induction cooking into a complete equipment plan.

Compared with a countertop model, the main difference is the installation method rather than heating power. It is suitable for:

• Hotel buffet counters and open kitchens;
• Fixed cooking stations in hot pot restaurants and restaurant chains;
• New kitchens or countertops undergoing reconfiguration;
• Locations that need fewer raised edges and easier wipe-down cleaning.

ATRX AT-CTBIG-003 is an example of a 3.5kW built-in flat induction cooker. It measures 340 × 340 × 150mm, uses a standard 220V single-phase configuration, and has an SS304 stainless steel body. For a built-in model, do not check only the external dimensions. You must also confirm the countertop cutout, the space underneath, and the required ventilation clearance. ATRX can provide cutout drawings for specific projects. Before construction, buyers can refer to the built-in cooker body cutout drawing and the operation panel cutout drawing.

Once a built-in unit is installed, relocating it is more difficult than moving a countertop cooker. Confirm the countertop cutout and model before fabrication. Do not cut the opening first and then ask the supplier to find a model that is only “close enough.”

Countertop Wok-Style Induction Cooker

A countertop wok-style induction cooker is designed for wok cooking, high-heat stir-frying, and tossing food. It generally uses a recessed cooking surface, a supporting structure, or a dedicated cookware contact area to keep the wok more stable during single-pot cooking.

It is suitable for Chinese restaurants, fast-food stalls, and kitchens that require rapid stir-frying, such as:

• Fried rice, chow mein, and stir-fried vegetables;
• Beef, chicken, and other dishes that require fast heating;
• Sauces, braised ingredients, and Chinese hot dishes that need continued heating;
• Cooking stations where chefs frequently push or toss the wok.

ATRX AT-CTW-003 is a 3.5kW countertop wok-style induction cooker. Its base dimensions are 420 × 470 × 300mm, the standard configuration is 220V single-phase, and the body is made of SS304 stainless steel. The series can be adjusted to meet project requirements, including the unit dimensions, feet, ventilation direction, control method, and voltage version. It is suitable for distributors, foodservice engineering companies, and restaurant chains that need OEM or ODM services. For more product information, see the ATRX 3.5KW Countertop Wok-Style Induction Cooker.

A wok-style induction cooker does not mean that every round-bottom pan can be used directly. Before purchasing, confirm the cooking surface shape, cookware diameter, and contact method between the pan and the cooking surface. The right model allows the 3.5kW output to support wok cooking effectively; looking only at the “3500W” figure is not enough.

Is a 3500W Commercial Induction Cooker Powerful Enough for a Kitchen?

A 3500W unit is generally suitable for small-scale, single-pot, high-frequency commercial cooking, especially as an independent heating station. It is not a universal solution for multiple large pots operating at high load in a central kitchen. To determine whether the power is sufficient, do not look only at the size of the restaurant. Consider how many pots need to be heated at the same time, the weight of the ingredients in each pot, and whether several units must operate at full load during service.

Suitable for Small Restaurants and Everyday Commercial Cooking

For small restaurants, food stalls, food trucks, café back kitchens, employee cafeterias, and hotel back kitchens, 3500W can cover many everyday single-pot tasks. It can serve as a fixed cooking station, or as a backup and supplementary unit where space is limited.

Use the following situations as a practical reference:

ATRX product information positions its 3.5kW countertop models for small kitchens, food trucks, catering events, and space-constrained cooking environments. For buyers, a more practical approach is to record the actual peak-hour workload first: how many pots need to operate at the same time within one hour, and what is the usual capacity of each pot? If most tasks involve only one pot at a time, 3500W is often easier to install and match with the existing kitchen circuit than a higher-power unit.

However, “suitable for a small restaurant” does not mean suitable for every small restaurant. If the menu includes large-batch soup production, rapid high-volume service, or several woks operating at the same time, evaluate the 3.5kW unit as one cooking station rather than treating it as the kitchen’s only heat source.

One-Pot Heating Can Handle Common Boiling, Stir-Frying, and Simmering Tasks

When used with one pot, a 3500W cooker can handle common tasks such as boiling, stir-frying, simmering, heating water, and warming sauces. For a small commercial kitchen, this means one unit can take a single pot from rapid heating to low-power holding without requiring a higher-power cooker for ordinary single-pot work.

Different cooking tasks require different heat settings:

• Boiling and heating water: Start at a higher power level for rapid heating, then reduce the power after boiling to help reduce the risk of boil-over.
• Stir-frying and pan-frying: Use the quick heat response after preheating the cookware to complete the cooking process efficiently.
• Soup, braising, and simmering: Reduce the power after reaching a boil so the contents remain at a steady simmer.
• Sauces and holding: Maintain the required temperature instead of using high heat for too long, which can cause localized overheating or excessive reduction at the bottom of the pot.

ATRX’s 3.5kW countertop flat induction cooker supports multiple power levels. Its product information lists applications including stir-frying, soup, simmering, and pan-frying. Actual results still depend on the cookware material, the flatness of the pan bottom, the starting temperature of the ingredients, and the load in the pot. Therefore, a 3500W cooker should not be described as a unit that can quickly cook every dish in every pan. A more accurate conclusion is that, with one pot, compatible cookware, and a reasonable load, it can cover common cooking needs in most small commercial kitchens.

Can This 3500W Induction Cooker Operate Continuously for Long Periods?

It can, but whether a 3500W unit can operate for long periods cannot be judged by the power rating alone. For a high-frequency single-pot station, the PCB, power module, coil, cooling system, and protection functions must work together. The operating environment also matters. Blocked air inlets, grease buildup, or insufficient clearance around the unit can reduce operating stability.

Its Commercial PCB Configuration Supports Long-Term Continuous Operation

The PCB is an important part of a 3500W induction cooker’s power control, temperature management, and safety protection systems. A commercial configuration is intended to handle repeated heating, sustained cooking, and frequent power adjustments during daily operation rather than passing only a one-time startup test.

ATRX uses a commercial-grade PCB solution in its product information and carries out multiple environmental and reliability tests on its circuit boards. The testing equipment includes:

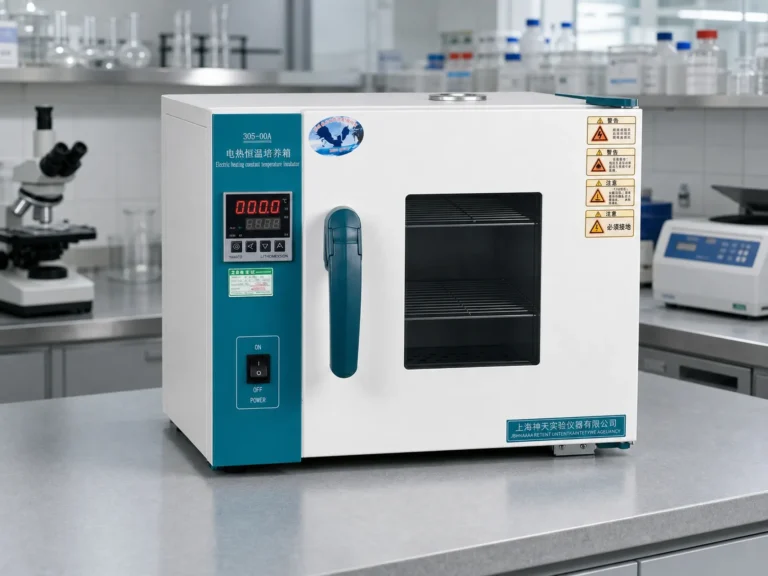

• Electric heating constant-temperature incubators for observing stability at elevated temperatures;

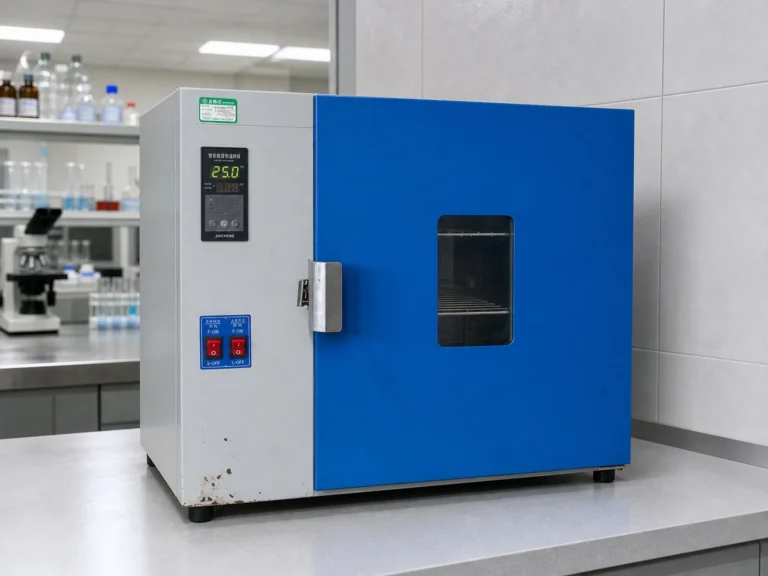

• Intelligent digital constant-temperature drying ovens for checking component changes under controlled temperatures;

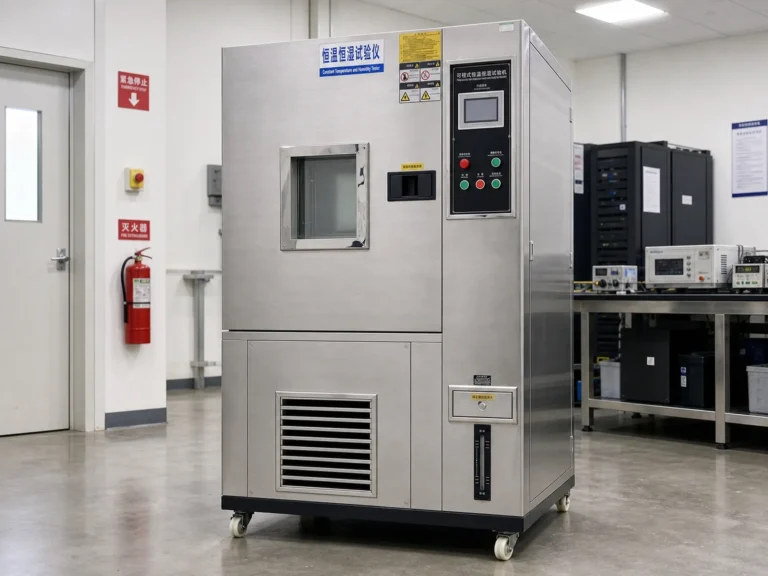

• Constant-temperature and humidity test chambers for simulating steam, moisture, and condensation;

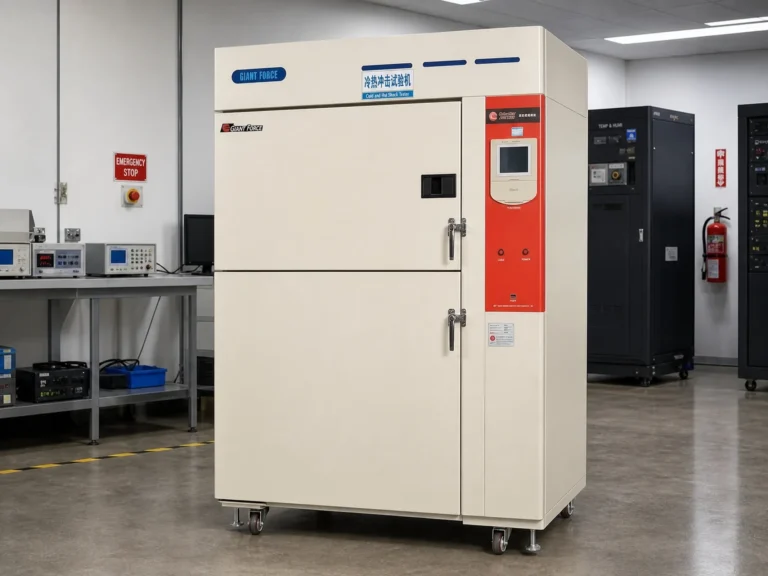

• Thermal shock test chambers for simulating rapid heating and cooling;

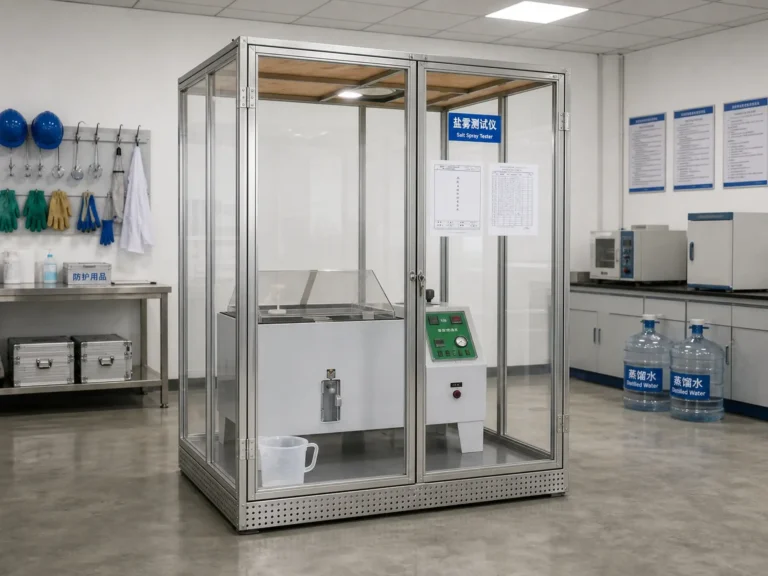

• Salt spray test chambers for evaluating the corrosion resistance of metal parts and connectors;

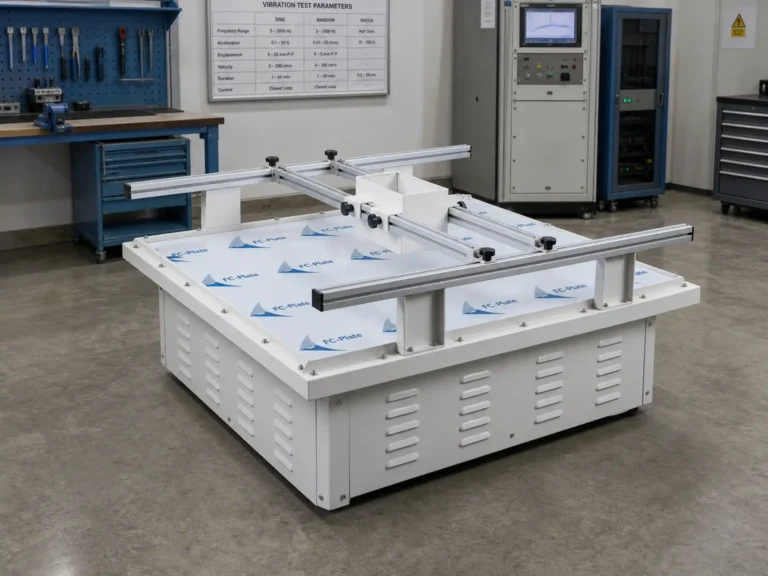

• Vibration test machines for checking whether internal components loosen during transportation.

These tests do not mean that every unit can run indefinitely in every environment. They help the manufacturer identify potential problems caused by heat, humidity, corrosion, and vibration in advance. ATRX includes PCB assembly, complete-unit testing, and outgoing inspection in its production process. Buyers can learn more about the factory testing procedures in the ATRX Commercial Induction Cooker Manufacturing and Quality Testing overview.

When evaluating a supplier, do not ask only whether the unit uses a “commercial PCB.” Also confirm which power module is used, whether high-temperature aging tests are carried out, whether the complete unit has undergone full-load testing, and whether test records or inspection standards are available. These questions provide more useful evidence than a general claim such as “industrial-grade configuration.”

Commercial Cooling Design Helps Reduce Overheating and Extend Operating Time

A 3500W unit produces heat during high-power operation, especially when a small commercial kitchen continuously uses it for single-pot boiling, stir-frying, and simmering. Cooling fans, heat sinks, internal air channels, air inlets, and exhaust outlets work together to move heat away from the power module and PCB area. Effective cooling gives the unit a better chance of maintaining stable output and helps reduce the risk of automatic power reduction or protective shutdown caused by overheating.

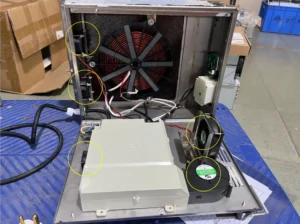

The internal structure image provided by ATRX shows that the relevant models use multiple quiet cooling fans and have separate protection and cooling arrangements for the PCB enclosure. The five fans can be seen at the positions marked in yellow. Fan quantity and layout may vary by model, so always refer to the structure drawing and technical information for the specific unit.

Multiple fans do not mean that the installation environment can be ignored. During actual use:

1. Do not block the air inlets or exhaust outlets.
2. Do not place the unit directly against a wall or another heat-producing appliance.
3. Clean grease and dust that accumulate around the air channels and fans regularly.
4. If abnormal noise, frequent power reduction, or overheating protection occurs, stop using the unit and investigate the cause.

An Associated Press report on a restaurant kitchen fire stated that a restaurant kitchen fire in Salt Lake City, Utah, in 2025 spread to nearby buildings, while the investigation was still ongoing. The report did not confirm that the fire was caused by an induction cooker or any specific appliance. The practical lesson is that kitchen equipment cooling, electrical isolation, and routine maintenance should not be based on guesswork. When equipment shows abnormal behavior, stop using it and have it checked by a qualified professional instead of continuing to operate it with a possible fault.

What Electrical Conditions Should Be Confirmed Before Installation?

A 3500W induction cooker is a commercial appliance that requires careful electrical planning. Before installation, confirm the unit’s rated voltage, rated current, circuit capacity, outlet or hard-wiring method, and overcurrent and residual-current protection. The fact that a plug fits does not mean that the entire circuit is suitable for carrying a 3500W load over the long term.

The Kitchen Voltage Must Match the Appliance’s Rated Voltage

Before placing an order, check the appliance nameplate and technical specifications, then compare them with the actual kitchen power supply. An incompatible voltage can prevent the unit from starting correctly, cause unstable heating, or create an electrical safety risk. Do not check only the plug shape. Similar-looking plugs may be used with different supply voltages and wiring standards in different countries.

Some of ATRX’s 3.5kW countertop and flat built-in models use a standard 220V single-phase configuration, and the product information lists a rated current of approximately 15.9A. However, parameters may differ by model, voltage version, and customized project. Always use the nameplate, quotation, and installation instructions for the exact model as the final reference. ATRX wok-style models can also be adapted to voltage versions required by different markets and projects, so one fixed voltage should not be used to represent every unit.

Before ordering, confirm the following information:

The Outlet and Power Circuit Must Be Able to Handle 3500W

At 220V single-phase power, a 3500W appliance has a rated current of approximately 15.9A. The actual installation must also account for cable length, ambient temperature, other equipment on the same circuit, and local electrical requirements. ATRX product information for some models recommends a 2.5mm² copper cable and a 20A residual-current circuit breaker, but this is not a universal installation answer for every 3500W model or every country.

Before installation, at minimum, confirm:

• The rated capacity of the outlet, plug, or fixed wiring terminals;
• The copper cable specification and installation method;
• Whether the circuit breaker and residual-current protection comply with local requirements;
• Whether the circuit is shared with other high-power appliances;
• Whether enough cooling and service clearance is available around the unit.

Do not assume that a circuit can carry the load over the long term simply because the appliance operates for a short time. Commercial kitchens may also run refrigerators, fryers, ovens, dishwashers, and exhaust equipment at the same time. The entire circuit and distribution system must be checked, not just the induction cooker.

What Cookware Is Required for a 3500W Commercial Induction Cooker?

A 3500W induction cooker is not compatible with every type of cookware. For a single-pot station, the cookware material and bottom shape affect whether the cooker can heat the pan, how quickly it heats, and how stable the pan is during use. When purchasing the appliance, evaluate the cookware already used in the kitchen instead of checking only the unit’s appearance and power rating.

Choose Cookware That a Magnet Can Stick To

The simplest way to check whether cookware is suitable for induction heating is to place a magnet against the bottom of the pan. If the magnet sticks firmly, the bottom usually contains magnetic material that can be activated by an induction cooker.

Cookware that is generally easier to match includes:

• Iron pans;
• Cast-iron pans;
• Cookware marked “suitable for induction cookers”;
• Some stainless-steel cookware with a magnetic composite base.

However, “stainless steel” alone does not guarantee compatibility. Different stainless-steel grades have different magnetic properties, and the structure of the base can also vary. The magnet test is only a quick screening method. Before commercial use, conduct a short heating test on the actual cooker. Check whether the unit consistently detects the pan, whether any abnormal warning appears, and whether the bottom heats in a way that meets the menu requirements.

ATRX’s 3.5kW product information includes components such as a coil, cookware temperature probe, and control board. The equipment still needs to be matched with suitable induction cookware. Buyers should ask the supplier to confirm the compatible cookware materials, bottom diameter, and recommended capacity so that the kitchen does not discover only after delivery that its existing cookware cannot be used.

Flat-Bottom Cookware Is Better Suited Than Curved-Bottom Cookware

For a 3500W flat countertop or built-in induction cooker, flat-bottom cookware is usually easier to position securely and can maintain fuller contact with the heating area. More stable contact generally supports more even heating, making it suitable for the boiling water, soup, simmering, and everyday flat-pan cooking tasks commonly performed on this type of unit.

If a curved bottom does not make enough contact with a flat cooking surface, it may cause:

• Unstable cookware placement;
• Poor matching between the heating area and the pan bottom;
• Uneven heating or slower temperature rise;
• The pan to shift during stir-frying.

That does not mean every curved-bottom pan is unsuitable. The cooking surface and support structure of a wok-style induction cooker may be designed for a specific wok. ATRX’s 3.5kW wok-style product uses a cooking surface structure suited to Chinese cooking. Buyers should confirm the cookware diameter, cooking surface shape, and bottom contact method for the specific unit rather than treating flat cookers and wok cookers as the same product.

If you are purchasing a 3500W commercial induction cooker for a small restaurant, food truck, hotel back kitchen, or foodservice engineering project, begin with three questions: Do you need a movable unit or a fixed installation? Will you mainly use flat-bottom cookware or a wok? Can the existing kitchen supply safely carry the appliance load?

ATRX supplies countertop single-burner, built-in, and wok-style 3.5kW products, with OEM/ODM options for dimensions, control method, voltage, appearance, and branding. The final model should be selected according to the cookware, countertop, electrical circuit, and actual service workload rather than by power rating alone.
